410128101 ITA, i1, with Protective Cover
410128101 ITA, i1, with Protective Cover

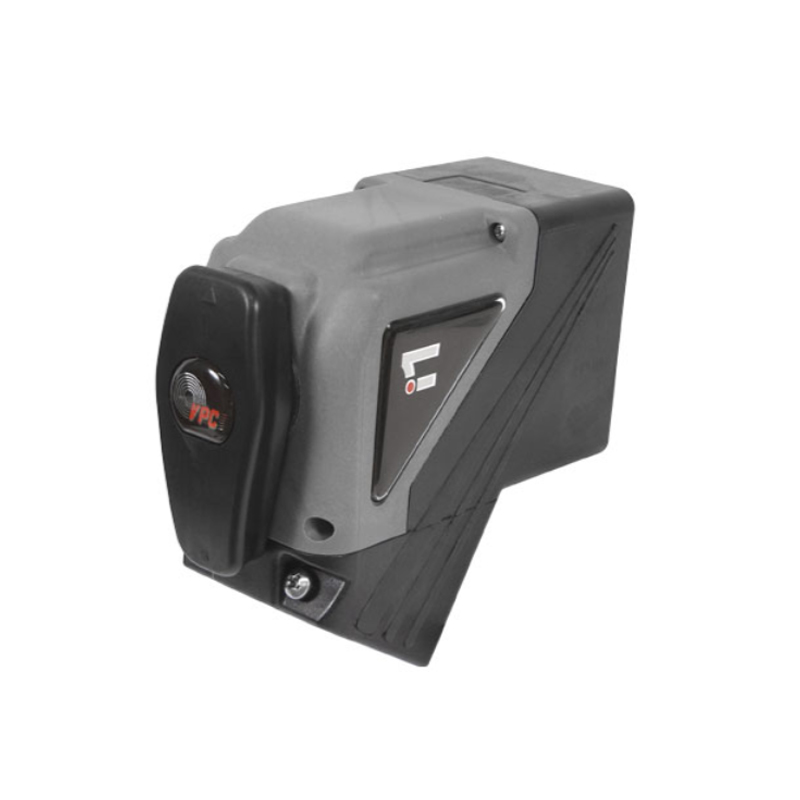

ITA, i1, with Protective Cover

The i1 ITA's small width and inboard handle increase it's side to side stackability. The U-shaped cable clamp allows modules to be pre-wired before assembly and can hold cable bundles with an cable bundle effective diameter of 1.07". The removable cover allows easy access to wiring for maintenance and probing.

Protective cover included.

描述
Specifications
Weight .55 lbs [.25 Kg] without protective cover
Frame Material and Clamp Housing Glass Reinforced Thermoplastic
Hardware Material Stainless Steel
Latches Nickel-Plated Beryllium Copper
Backshell Glass Reinforced Thermoplastic
Protective Cover Material Low Density Polyethylene
Cable Clamp Material Powder Coated Aluminum
Cycle Life

10,000 Cycles

Max. Cable Bundle Diameter 1.07"
Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 105° C
