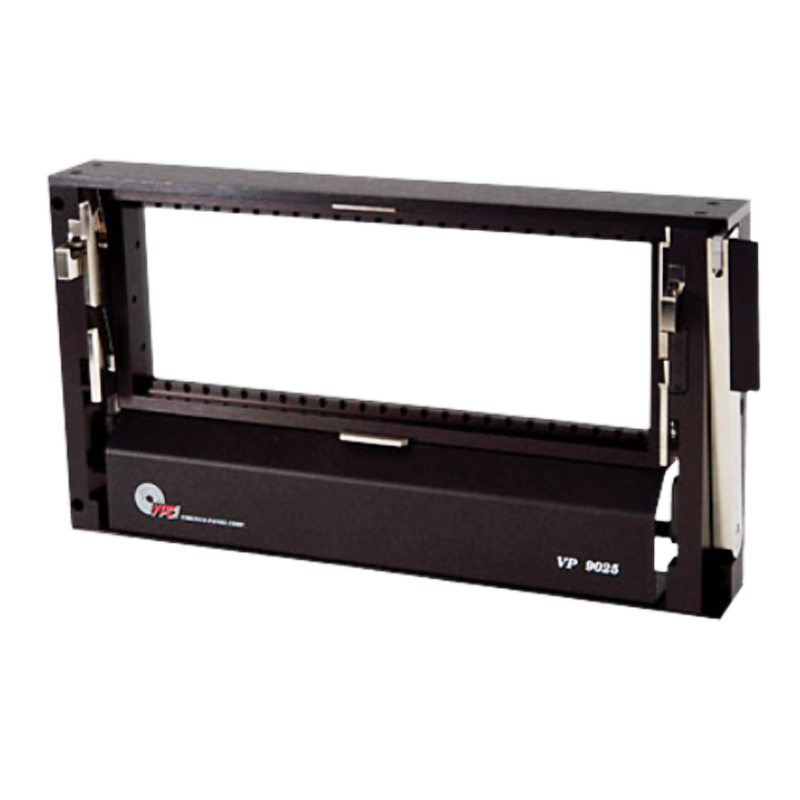

Receiver, 9025, 25 Module, Single Tier
This 25 Module Receiver is designed to fit into a standard 19” rack. It is equipped with a locking handle to ensure contacts are engaged. A standard integrated microswitch shuts off power when the ITA disengages from the receiver.



描述
Specifications
Weight 15.60 lbs. [7.08 kg]
Frame Material Anodized Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 25 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Max. Weight Support 80 lbs. @ 12 ” [36 kg @ 30.5 cm]
Max. Mating Force 710 lbs. [322.1 kg]
