310104420
310104420

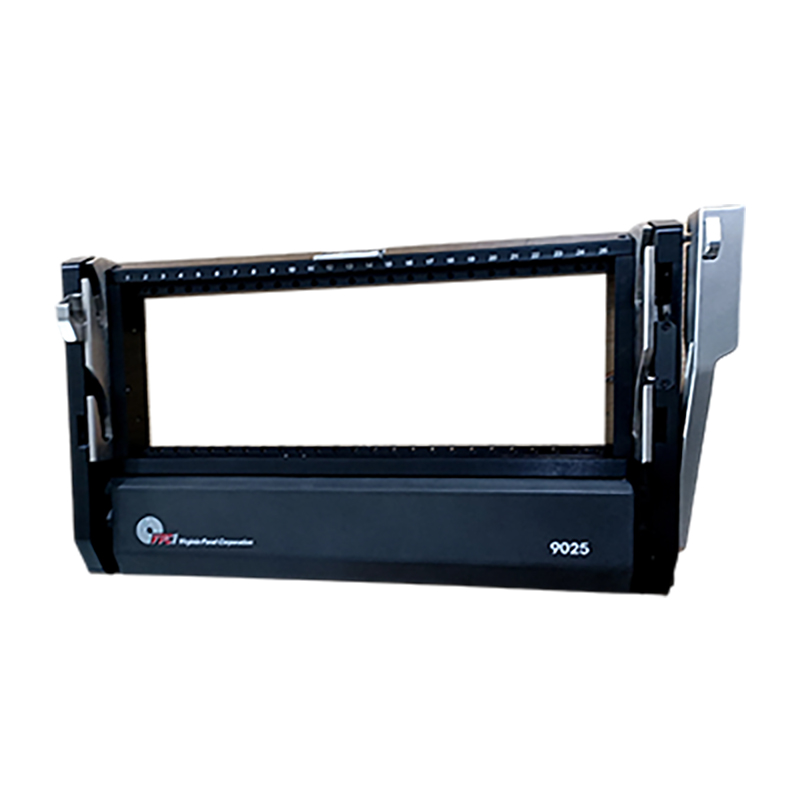

Receiver, 9025, 25 Module, Single TierThe 9025, 25-module receiver, is designed to fit into a standard 19” rack. It is equipped with a locking handle to ensure your contacts are engaged. A standard integrated microswitch shuts off power when the ITA disengages from the receiver.
描述
Specifications | |
---|---|
Weight | 12.60 lbs. [5.72 kg] |
Frame Material | Anodized Aluminum |
Slide Material | Nickel Plated Steel |
Linkage, Handle, Latch | Stainless Steel |
Available Module Slots | 25 Positions |
Cycle Life | 20,000 Cycles |
Temperature | -55° C to 85° C |
Max. Weight Support | 80 lbs. @ 12” [36 kg @ 30.5 cm] |
Max. Mating Force | 1102 lbs. [499.9 kg] |
