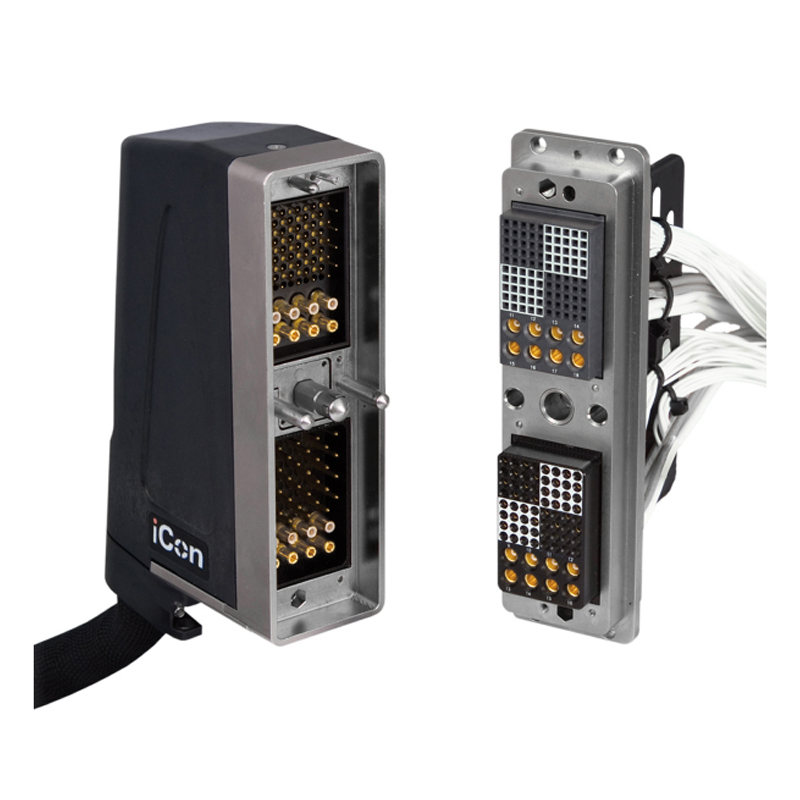

ITA, iCon, with Protective Cover

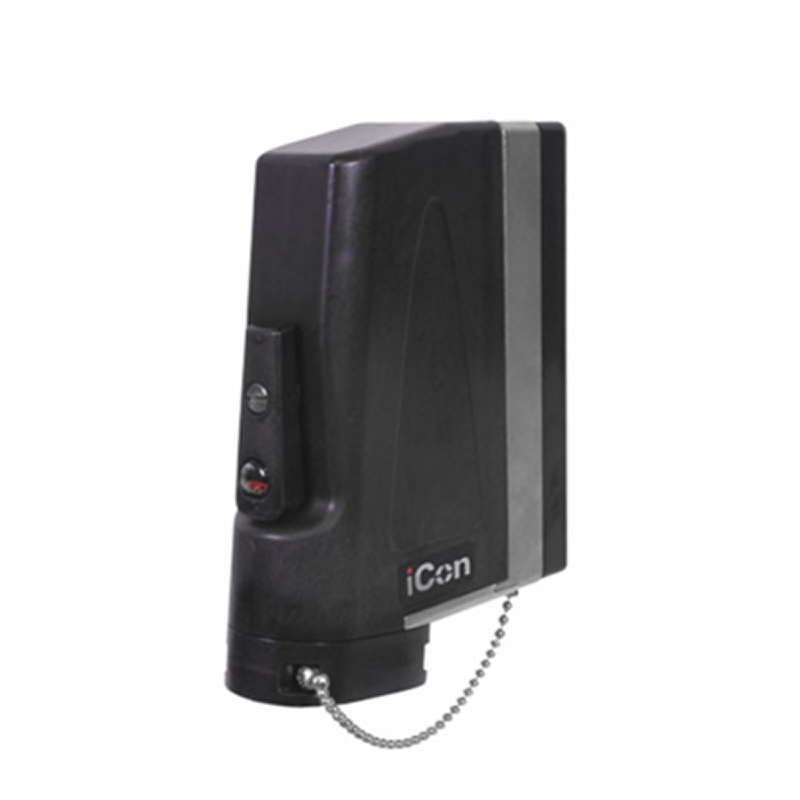

ITA, iCon, with Protective Cover



The iCon ITAs small width and inboard handle allow for easy side-to-side stackability. The u-shaped cable clamp allows modules to be pre-wired before assembly and offers a maximum cable bundle diameter of 1.21". The slide-off cover allows easy access to wiring for maintenance and probing.

Cable bundle too large? Choose the iCon XL! XL-Sized backshell, bend radius, & cable exit to better accommodate larger cables such as high-power or high-speed cables.

描述

Specifications
Weight .65 lbs [.29 Kg]
without protective cover
Frame Material Nickel Plated Aluminum Alloy
Hardware Material Stainless Steel Alloy
Drive Unit Material Bronze and Stainless Steel
Plastic Components and Protective Cover Material Black Thermoplastic
Cable Clamp Material Powder Coated Aluminum
Max. Cable Bundle Diameter 1.21"
Available Module Slots 2 Positions
Cycle Life

10,000 Cycles

Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 125° C
