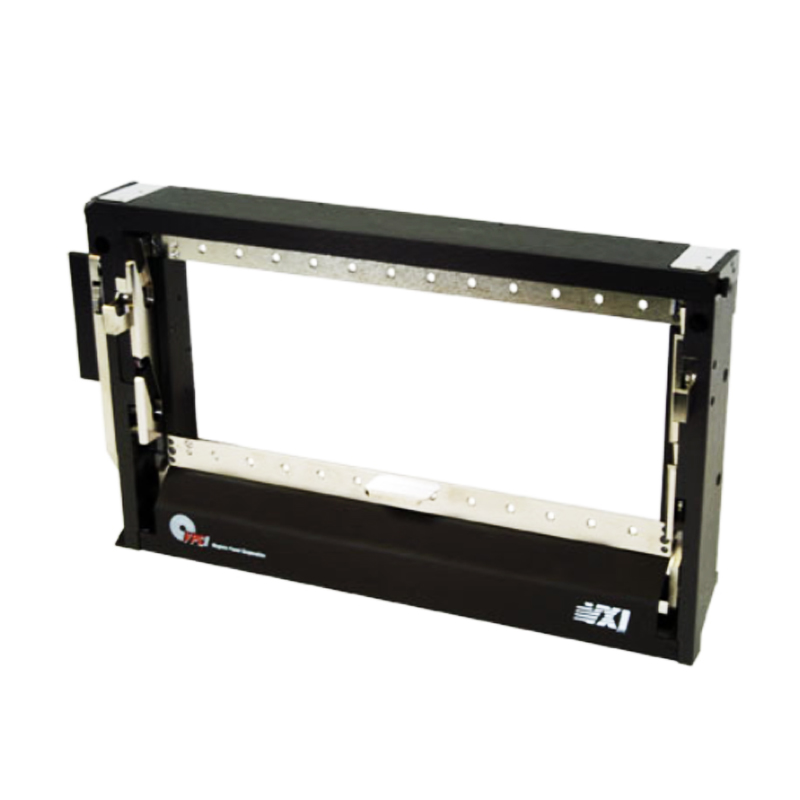

Receiver, 9025 VXI, 25 Module, C-Size InterlockingThis 25 module VXI Receiver allows use of 12 pre-wired interconnect adapters. It hinges down for direct access to the instruments and is equipped with a locking handle to ensure all contacts are engaged. A standard integrated microswitch shuts off power when the ITA disengages from the receiver.
描述
Specifications | |
---|---|
Weight | 16.06 lbs. [7.29 kg] |
Frame Material | Anodized Aluminum |
Slide Material | Nickel Plated Steel |
Linkage, Handle, Latch | Stainless Steel |
Available Module Slots | 25 Positions |
Cycle Life | 20,000 Cycles |
Temperature | -55ºC to 85ºC |
Max. Weight Support | 80 lbs. @ 12 " [36 kg @ 30.5 cm] |
Max. Mating Force | 605 lbs. [274.4 kg] |
